TELIT IOT SOLUTIONS INC.

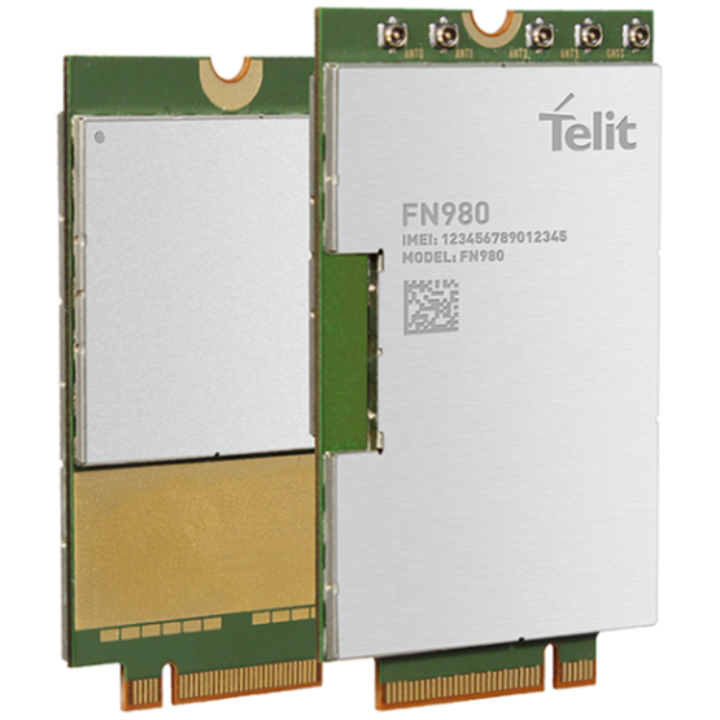

FN980

Contact manufacturer

Sales

Address

5425 Page Rd, Suite 120, Durham, NC, 27703

Phone

+1 888 846 9773

Email

sales-northamerica@telit.com

TELIT IOT SOLUTIONS INC.

FN980

Key features

Support both LTE and 5G sub-6/SA ready
Four antenna connectors for LTE/sub-6
Standard M.2 (NGFF) data card form factor
High DL/UL throughput, well suited for routers, mobile gateways and access points
State-of-the-art GNSS receiver with double frequency GPS (Band L1/L5) for better accuracy

Product description

The FN980 data card delivers high data rates, supports both LTE and 5G sub-6. The M.2 form factor is particularly well suited for products with very high throughput requirements such as routers, mobile gateways, and access points, providing the most advanced LTE and 5G connectivity.

Overview

Network technology: 5G NR NSA + LTE
LTE category support: Cat 20
Form factor: M.2

Hardware & Network

Features

UDP

Checked

TCP

Checked

UART

Checked

GPIO

Checked

Serial

Checked

GPS

Assisted And Standalone

LTE

Band2 (1900 MHz)

Band4 (1700 MHz)

Band5 (850MHz)

Band13 (700 MHz)

Band66 (1700 MHz)

LTE Global / Roaming

Band1 (2100MHz)

Band3 (1800MHz)

Band7 (2600 MHz)

Band14 (700 MHz)

Band40 (2300 MHz)

Band46 (5200 MHz)

5G

NSA FR1 (Sub6) n2

NSA FR1 (Sub6) n5

NSA FR1 (Sub6) n66

5G Global / Roaming

NSA FR1 Roaming n77

NSA FR1 Roaming n78

Software

FCC ID

RI7FN980

FoTA For Baseband/Modem Software Update Capability

—

FoTA Client Type

—

Other features

Voice capable: —
Native IM client: Checked
Battery safety: —
SMS Capability: Checked
Developer Kit: Checked
ALO (Airborne LTE Operations): —
Diagnostics: —
Global Capable: —
eUICC: —
Private Wireless Network (On Site): Checked
LTE Licensed
LTE CBRS
5G Licensed
Mobile Private Network: Checked
