Quectel Wireless Solutions Co., Ltd.

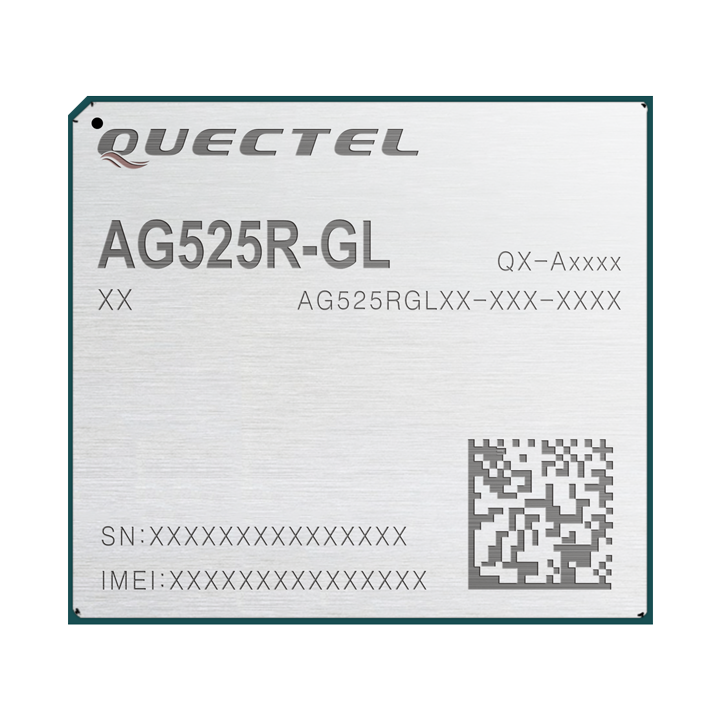

AG525R-GL
Product description
AG525R-GL is automotive grade LTE category 12 module developed by Quectel. Designed and manufactured according to IATF 16949:2016 automotive quality management system, it is targeted at the IoV (Internet of Vehicles) applications.
Overview
- Network technology
- LTE + Global Bands
- LTE category support
- Cat 12
- Form factor
- Other
Hardware & Network
Features
- UDP
- Checked
- TCP
- Checked
- UART
- Checked
- GPIO
- Checked
- Serial
- Checked
- GPS
- Assisted And Standalone
- LTE
-
Band2 (1900 MHz)
Band4 (1700 MHz)
Band5 (850MHz)
Band13 (700 MHz)
Band66 (1700 MHz)
- LTE Global / Roaming
-
Band1 (2100MHz)
Band3 (1800MHz)
Band7 (2600 MHz)
Band12 (700 MHz)
Band40 (2300 MHz)
- GPRS
-
1800 MHz
1900 MHz
850 MHz
900 MHz
- GSM
-
1800 MHz
1900 MHz
850 MHz
900 MHz
Supported Global/Roaming Markets
- Canada/Mexico
- —
- Europe
- —
- Asia
- —
- Puerto Rico/Latin America
- —
Software
FCC ID
XMR2020AG525RGL
FoTA For Baseband/Modem Software Update Capability
—
FoTA Client Type
—
Other features
- Voice capable
- Checked
- Native IM client
- —
- Battery safety
- —
- SMS Capability
- Checked
- Developer Kit
- Checked
- ALO (Airborne LTE Operations)
- —
- Diagnostics
- —
- Global Capable
- Checked
- eUICC
- —
- Private Wireless Network (On Site)
- —
- Network Slicing
- —
- Mobile Private Network
- —
Chassis & power source
Dimensions
38.0 mmx42.0 mmx2.65 mm cm.
Relative humidity
35%~60%
Stored temperature
-40 °C to 85 °C
Operating temperature
-35 °C to 75 °C
Weight
9.2g lbs
Voltage supply
3.3~4.3 V，typical 3.8 V
Power consumption
—
