Quectel Wireless Solutions Co., Ltd.

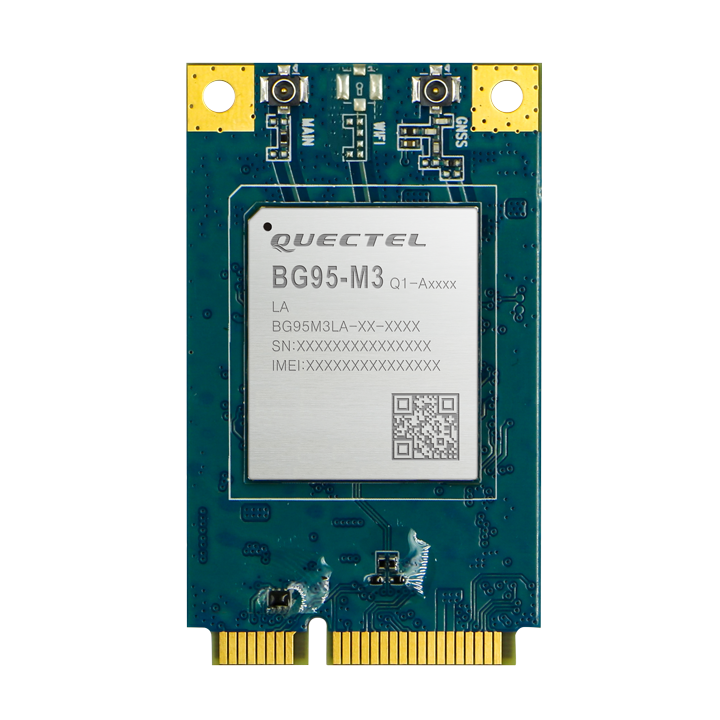

BG95-M3 MINIPCIE
Key features
- Ultra-low Power Consumption
- Support LTE CATM1/NB2/EGPRS
- Super slim profile in LGA package
- Integrated RAM and flash in the baseband chipset
- Comprehensive set of hardware-based security features
Product description
BG95 is a series of multi-mode LTE Cat M1/Cat NB2/EGPRS module with integrated GNSS functionality. It is fully compliant with 3GPP Rel. 14 specification and offers a maximum data rate of 589Kbps downlink and 1.12Mbps uplink. It features ultralow power consumption by leveraging the integrated RAM/flash as well as the ARM Cortex A7 processor supporting ThreadX, achieving up to 70% reduction in PSM leakage and 85% reduction in eDRX current consumption compared to its predecessor.
Overview
- Network technology
- LTE + Global Bands
- LTE category support
- Cat M1
- Form factor
- PCIe mini
Hardware & Network
Features
- UDP
- —
- TCP
- —
- UART
- Checked
- GPIO
- —
- Serial
- —
- GPS
- Assisted And Standalone
- LTE
-
Band4 (1700 MHz)
Band13 (700 MHz)
- GPRS
-
1800 MHz
1900 MHz
850 MHz
900 MHz
- GSM
-
1800 MHz
1900 MHz
850 MHz
900 MHz
Software
FCC ID
XMR201910BG95M3
FoTA For Baseband/Modem Software Update Capability
Verizon FoTA Solution and Non Verizon FoTA solution (combined)
FoTA Client Type
LWM2M
Other features
- Voice capable
- —
- Native IM client
- —
- Battery safety
- —
- SMS Capability
- Checked
- Developer Kit
- Checked
- ALO (Airborne LTE Operations)
- —
- Diagnostics
- —
- Global Capable
- —
- eUICC
- —
- Private Wireless Network (On Site)
- —
- Network Slicing
- —
- Mobile Private Network
- Checked
Chassis & power source
Dimensions
5.9x3.0x0.49 in.
Relative humidity
—
Stored temperature
-40 °C to 85 °C
Operating temperature
-35 °C to 75 °C
Weight
2.15g oz
Voltage supply
—
Power consumption
—
