TELIT IOT SOLUTIONS INC.

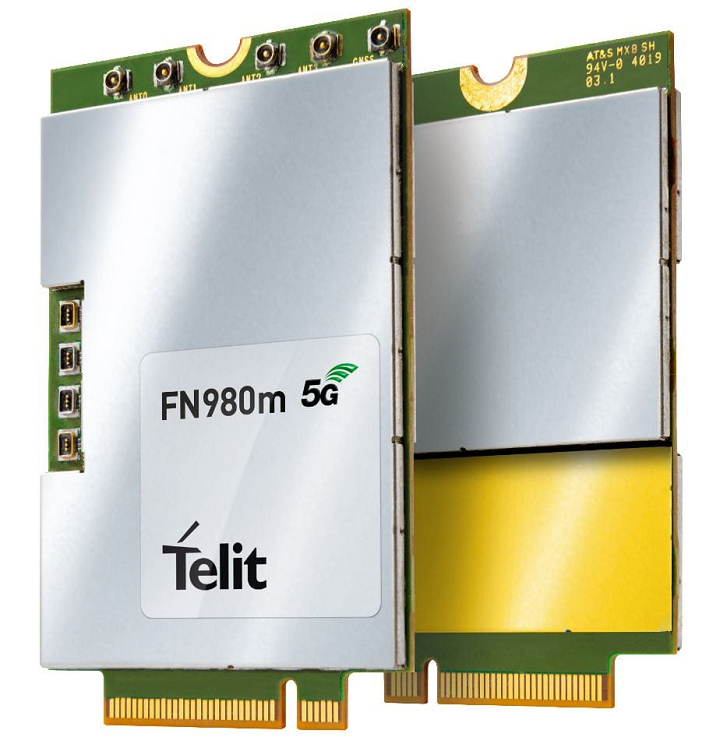

FN980m
Key features
- Active antennas for 5G mmWave including transceiver
- PMIC and RF IC front-end and antenna array
- Up to 800 MHz bandwidth in n257, 260 and n261 5G NR mmWave bands
- Supports beamforming, beam steering and beam tracking for bi-directional mmWave
Product description
- Active antennas for 5G mmWave including transceiver, PMIC and RF IC front-end and antenna array.
- Up to 800 MHz bandwidth in n257, 260 and n261 5G NR mmWave bands
- Supports beamforming, beam steering and beam tracking for bi-directional mmWave communications
Overview
- Network technology
- 5G NR NSA + LTE
- LTE category support
- Cat 20
- Form factor
- M.2
Hardware & Network
Features
- UDP
- Checked
- TCP
- Checked
- UART
- Checked
- GPIO
- Checked
- Serial
- Checked
- GPS
- Assisted And Standalone
- LTE
-
Band2 (1900 MHz)
Band4 (1700 MHz)
Band5 (850MHz)
Band13 (700 MHz)
Band66 (1700 MHz)
- LTE Global / Roaming
-
Band1 (2100MHz)
Band3 (1800MHz)
Band7 (2600 MHz)
Band14 (700 MHz)
Band40 (2300 MHz)
Band46 (5200 MHz)
- 5G
-
NSA FR1 (Sub6) n2
NSA FR1 (Sub6) n5
NSA FR1 (Sub6) n66
NSA FR2 (mmWave) n260
NSA FR2 (mmWave) n261
- 5G Global / Roaming
-
NSA FR1 Roaming n78
NSA FR2 Roaming n257
Software
FCC ID
RI7FN980M
FoTA For Baseband/Modem Software Update Capability
—
FoTA Client Type
—
Other features
- Voice capable
- —
- Native IM client
- Checked
- Battery safety
- —
- SMS Capability
- Checked
- Developer Kit
- Checked
- ALO (Airborne LTE Operations)
- —
- Diagnostics
- Checked
- Global Capable
- —
- eUICC
- —
- Private Wireless Network (On Site)
-
LTE Licensed
LTE CBRS
5G Licensed - Mobile Private Network
- Checked
Chassis & power source
Dimensions
1.1811x1.9685x0.137795 in.
Relative humidity
—
Stored temperature
-20°C °C to 55 °C
Operating temperature
-40°C °C to 85 °C
Weight
0.024 lbs
Voltage supply
3.1-3.6 VDC
Power consumption
—
