BC66-NA
Product description

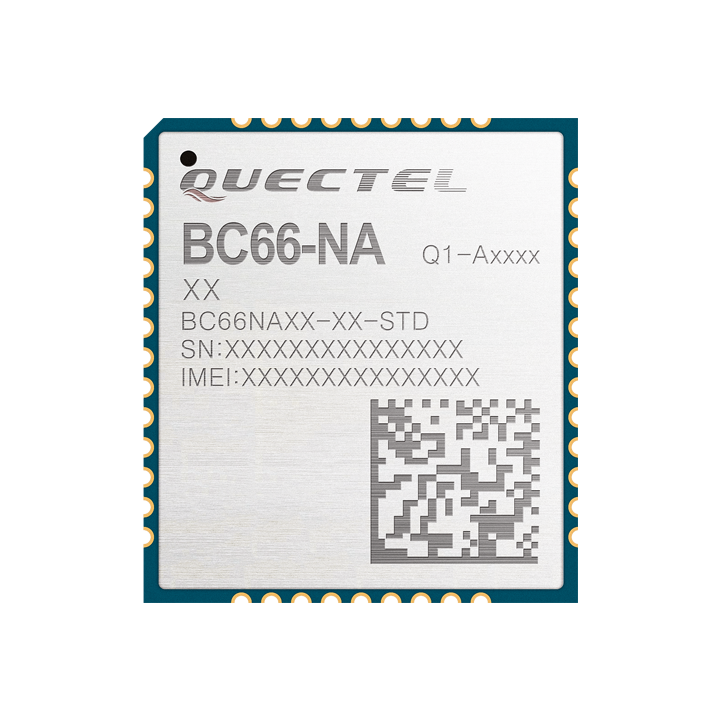

BC66 is a high-performance, multi-band NB-IoT module with extremely low power consumption. The ultra-compact 17.7mm × 15.8mm × 2.0mm profile makes it a perfect choice for size sensitive applications.
Overview
- Network technology
- LTE Only
- LTE category support
- Cat NB2
- Form factor
- Surface Mount / Soldered
Hardware & Network
Features
- UDP
- —
- TCP
- —
- UART
- —
- GPIO
- —
- Serial
- —
- GPS
- Standalone
- LTE
-
Band13 (700 MHz)
Software
FCC ID
TBD
FoTA For Baseband/Modem Software Update Capability
Verizon FoTA Solution (only)
FoTA Client Type
LWM2M
Other features
- Voice capable
- —
- Native IM client
- —
- Battery safety
- —
- SMS Capability
- Checked
- Developer Kit
- —
- ALO (Airborne LTE Operations)
- —
- Diagnostics
- Checked
- Global Capable
- —
- eUICC
- —
- Private Wireless Network (On Site)
- —
- Network Slicing
- —
- Mobile Private Network
- —
Chassis & power source
Dimensions
1.77x1.58x0.2 in.
Relative humidity
—
Stored temperature
-45 -
Operating temperature
-40 -
Weight
—
Voltage supply
2.1V ~ 3.63V Typ 3.3V
Power consumption
—
