Quectel Wireless Solutions Co., Ltd.

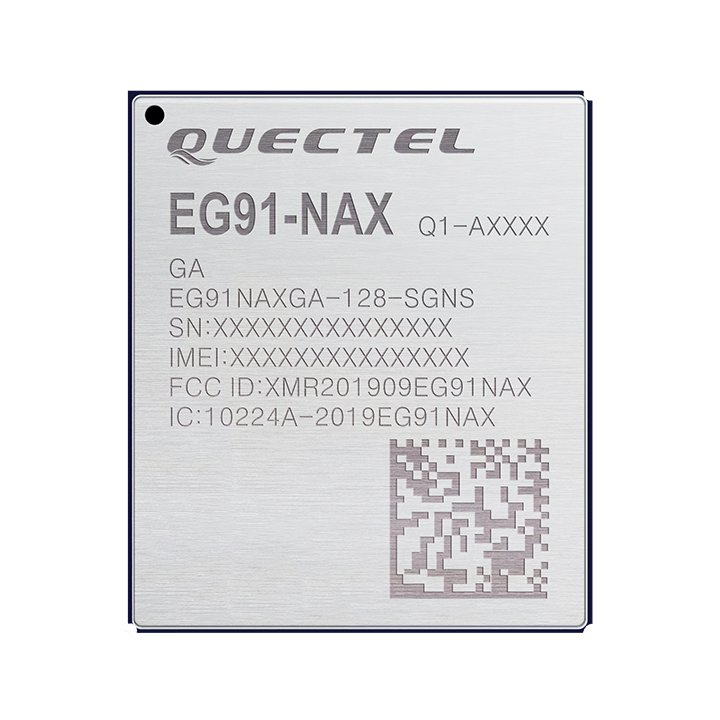

EG91-NAX
Product description
Quectel EG91-NAX is a LTE category 1 module optimized specially for M2M and IoT applications. It features cost-effective and low power LTE connectivity, and delivers M2M-optimized speeds of 10Mbit/s downlink and 5Mbit/s uplink.
Overview
- Network technology
- LTE Only
- LTE category support
- Cat 1
- Form factor
- Surface Mount / Soldered
Hardware & Network
Features
- UDP
- Checked
- TCP
- Checked
- UART
- Checked
- GPIO
- Checked
- Serial
- Checked
- GPS
- Assisted And Standalone
- LTE
-
Band2 (1900 MHz)
Band4 (1700 MHz)
Band5 (850MHz)
Band13 (700 MHz)
Software
FCC ID
XMR201909EG91NAX
FoTA For Baseband/Modem Software Update Capability
Verizon FoTA Solution (only)
FoTA Client Type
LWM2M
Other features
- Voice capable
- Checked
- Native IM client
- —
- Battery safety
- —
- SMS Capability
- Checked
- Developer Kit
- —
- ALO (Airborne LTE Operations)
- —
- Diagnostics
- —
- Global Capable
- —
- eUICC
- —
- Private Wireless Network (On Site)
- —
- Network Slicing
- —
- Mobile Private Network
- —
Chassis & power source
Dimensions
25mmx29mmx2.3mm in.
Relative humidity
—
Stored temperature
-40°C °C to 85°C °C
Operating temperature
-35°C °C to 75°C °C
Weight
3.8g lbs
Voltage supply
Supply Voltage: 3.3V~4.3V, 3.8V Typ.
Power consumption
—
