Quectel Wireless Solutions Co., Ltd.

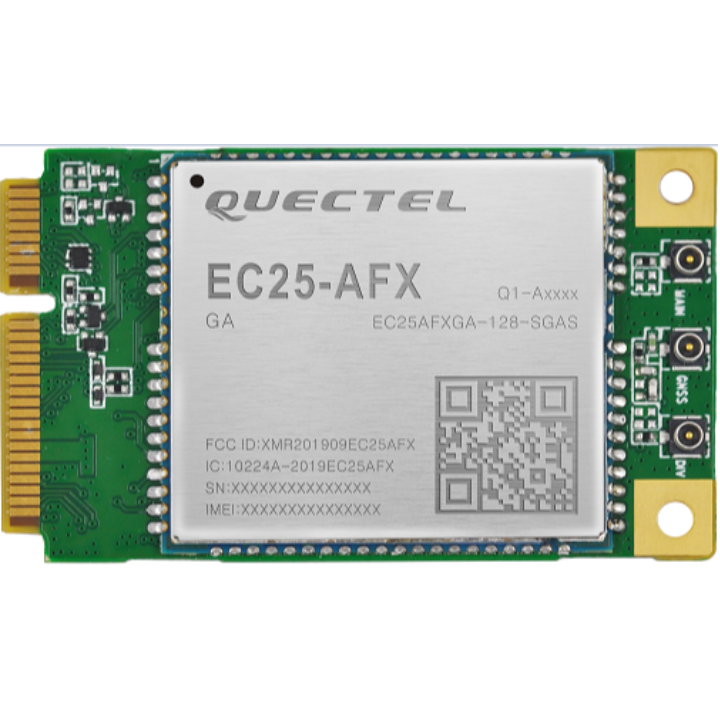

EC25-AFX MINIPCIE
Product description
Quectel EC25-AFX MINIPCIE is a LTE Cat 4 module optimized specially for M2M and IoT applications. Adopting the 3GPP Rel. 10 LTE technology, it delivers 150Mbps downlink and 50Mbps uplink data rates.
Overview
- Network technology
- LTE Only
- LTE category support
- Cat 4
- Form factor
- PCIe mini
Hardware & Network
Features
- UDP
- —
- TCP
- —
- UART
- Checked
- GPIO
- Checked
- Serial
- Checked
- GPS
- Assisted And Standalone
- LTE
-
Band2 (1900 MHz)
Band4 (1700 MHz)
Band5 (850MHz)
Band13 (700 MHz)
Band66 (1700 MHz)
Software
Voice & Data
FCC ID
XMR201909EC25AFX
FoTA For Baseband/Modem Software Update Capability
Verizon FoTA Solution and Non Verizon FoTA solution (combined)
FoTA Client Type
LWM2M
Other features
- ALO (Airborne LTE Operations)
- —
- Battery safety
- —
- Developer Kit
- Checked
- Diagnostics
- Checked
- eUICC
- —
- Global Capable
- —
- Mobile Private Network
- —
- Native IM client
- —
- Network Slicing
- —
- NTN (Satellite) Capable
- —
- Private Wireless Network (On Site)
- —
- SMS Capability
- Checked
- Voice capable
- —
Chassis & power source
Dimensions
30mmx51mmx4.9mm in.
Relative humidity
—
Stored temperature
-40°C °C to 80°C °C
Operating temperature
-35°C °C to 75°C °C
Weight
9.8g lbs
Voltage supply
—
Power consumption
—
