TELIT IOT SOLUTIONS INC.

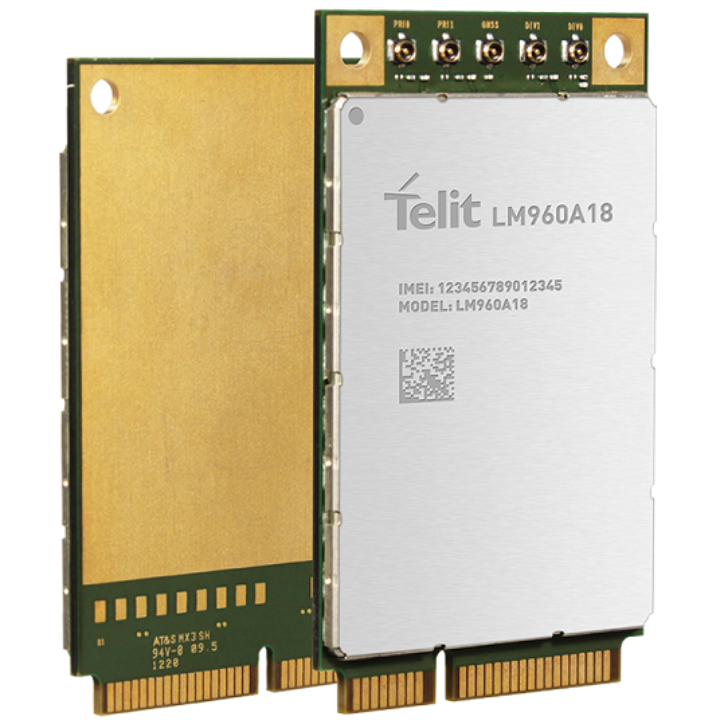

LM960A18
Contact manufacturer
SalesAddress
5425 Page Rd, Suite 120, Durham, NC, 27703
Phone
+1 888 846 9773
TELIT IOT SOLUTIONS INC.
LM960A18
Key features
- Data only module
- LTE Cat 18: Exceptionally high-speed with data rates of up to 1.2G bps download and 150 Mbps upload
- Full GNSS support: GPS, GLONASS, Galileo, Beidou
- Standard Mini PCIe Data-card form factor
Product description
The LM960A18 data card delivers high speed data rates on Advanced LTE and offers a cellular connection for products in the router and gateway environment. The mPCIe form factor is particularly well suited for products with very high throughput requirements such as routers, mobile gateways, and access points, providing the most advanced 4G LTE connectivity. The LM960 mPCIe achieves download rates up to 600 Mbps by supporting 3GPP release 11 LTE carrier aggregation.
Overview
- Network technology
- LTE + Global Bands
- LTE category support
- Cat 18
- Form factor
- PCIe mini
Hardware & Network
Features
- UDP
- Checked
- TCP
- Checked
- UART
- Checked
- GPIO
- Checked
- Serial
- Checked
- GPS
- Standalone
- LTE
-
Band2 (1900 MHz)
Band4 (1700 MHz)
Band5 (850MHz)
Band13 (700 MHz)
Band48 (3500 MHz)
Band66 (1700 MHz)
Software
FCC ID
RI7LM960
FoTA For Baseband/Modem Software Update Capability
—
FoTA Client Type
—
Other features
- Voice capable
- —
- Native IM client
- Checked
- Battery safety
- Checked
- SMS Capability
- Checked
- Developer Kit
- Checked
- ALO (Airborne LTE Operations)
- —
- Diagnostics
- —
- Global Capable
- —
- eUICC
- —
- Private Wireless Network (On Site)
-
LTE Licensed
LTE CBRS - Mobile Private Network
- Checked
Chassis & power source
Dimensions
50.95x30x2.7 in.
Relative humidity
—
Stored temperature
-40°C to
Operating temperature
-40°C to
Weight
—
Voltage supply
3.1 - 3.6 Volts
Power consumption
—
